Shape measuring system

laser3Dcamera-based

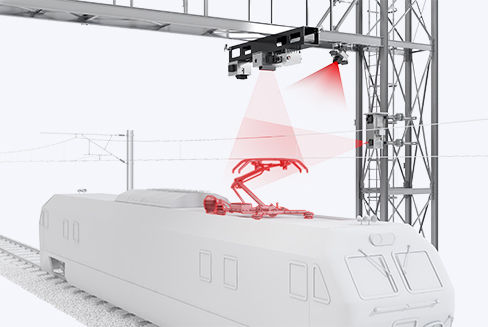

Many factors and parameters can affect the interaction between the pantograph and the catenary. Internal or external factors affect the dynamic behavior of the system and lead to parameter variations. A pantograph in “non-standard conditions” might adversely affects the contact line or that requires a specific maintenance activities. A complete inspection of each of its parts is needed to perform data correlation. Morph & Wear This module realize a 3D measurement by analyzing the images of the trace obtained on the surface of the pantograph with a collimated laser beam acquired by a digital matrix camera. The Morph & Wear module surveys: the pantograph head as 3D point cloud for identifying defects of the shape of the head by comparison with a 3D model or with previous acquisitions of the same pantograph; the upper surface of the contact strip for measuring its wear and lack of material from the contact stripes.
