Wear measuring system

camera-basedlaserpickup shoes

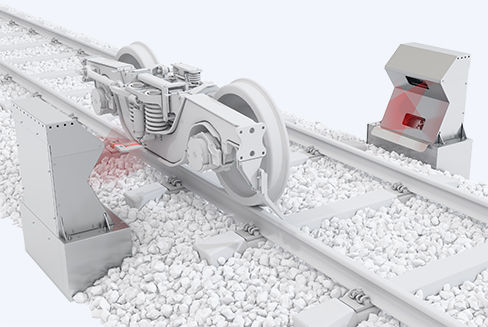

The third rail is the way of providing electric power typically in mass or rapid transit lines. As the shoegear is responsible for the current drainage it’s important to perform a regular inspection and ensure the optimal interaction avoiding electrical interferences and reducing corrective maintenance. Shoegear Wear The system is based on high accuracy laser and cameras detection units placed on the trackside. The system can detect the full profile of the shoegear and it is capable to determine its wear and position respect to the Top of Rail during the transition over the system. The measurement of the shoegear wear is performed by the elaboration of the profile obtained during the acquisition.
