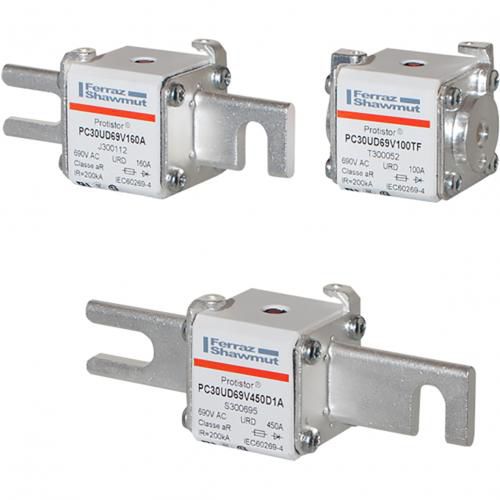

Square fuse Protistor® size 30

super fast-actingcurrent-limitingClass aR

Approvals & Standards • IEC 60269-4 Compliance • UL/CSA Recognized E76491 • CCC GB 13539.4 The 690/700V Protistor® fuse-links range provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These aR ultra-fast acting square body fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles. They have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors, IGBT and MOSFET devices. They are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic. Each fuse-link can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch. • Multiple body sizes and terminals or blades combination • Very low I²t for improved semiconductor protection • Superior cycling capability Applications • Protection of inverters, motor drives, UPS systems and similar 690V or less equipments.
