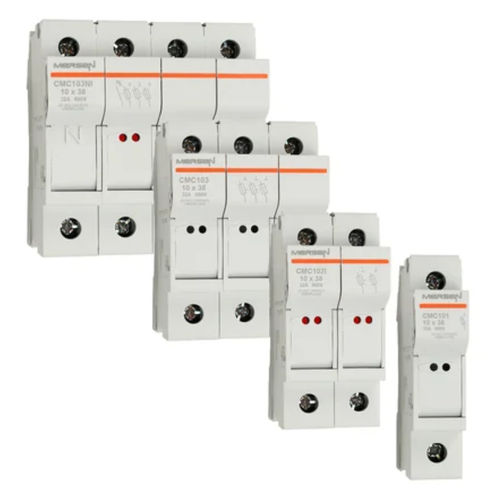

Cylindrical fuse holder Modulostar® CMC10 series

DIN railcompactIEC

• RoHS, Reach compliant • Marine certificates The innovative and comprehensive Modulostar® range of Mersen fuse-holders. Modular fuse-holders are finger-safe under IEC standards to an IP20 grade of protection, including fuse changing (with the flick of a finger). Modular fuse-holders are available in 1, 2, 3 or 4 poles, with or without visual blown fuse indicator. Multi-pole units can also be field assembled by ordering pin-ties assembly kit. Modulostar® range is made of tough and durable thermoplastic or thermoset material. • Finger safe • Easy access to the fuse • Lockable without accessory • Sealable in closed & open position • Optional visual blown fuse indicator • Multi-pole assembly kit available • Plastic material UL94V2 mini • Plastic material R22HL2 for railway application • Flame retardant materials with glow wire flammability index to 960°C • Schock and vibration tested for marine and railway applications • All circuits up to 690V for protection of motors, transformers, • low voltage distribution, control circuits, drive protection, metering • Non-load operation
