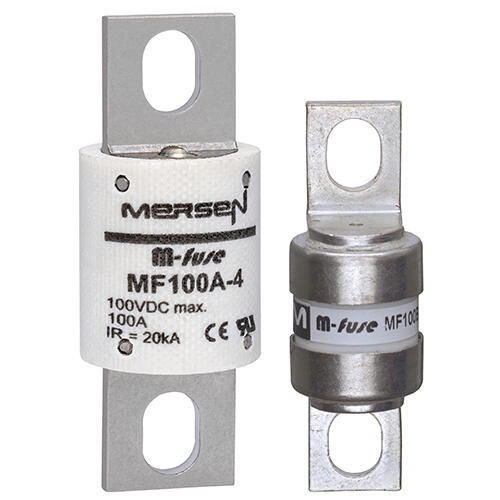

Cylindrical fuse MF seriesbladecurrent-limitingDC
Add to favorites
Compare this product
Characteristics
- Configuration
- cylindrical, blade
- Type
- current-limiting
- Other characteristics
- DC
- Applications
- battery
- Amperage
Max.: 200 A
Min.: 50 A
- VDC
100 V
Description
• Power Cycling & Vibrations: JASO D622
• IATF - ISO/TS 16949 Quality management undergoing certification
M-fuse line-up belongs to the new DC Over-Current protection (O.C.P.) range developed by MERSEN to address specific needs in EV/HEV and Battery Electrical Storage System.
M-fuse provides the ultimate protection of the battery modules offering reliable clearing of DC fault currents.
It has been specifically engineered and tested to provide DC-applications best-in-class protection performance: Up to 100VDC, Current rating (In) = 50 to 200A, Interrupting Rating (IR) = 20kA, L/R ≤1.5ms, Minimum Breaking Capacity (MBC) < 1kA.
