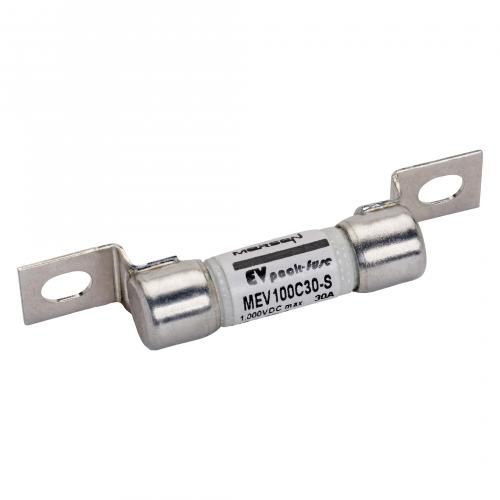

Cylindrical fuse MEV100C series
bladecompactcurrent-limiting

Cylindrical fuse - MEV100C series - Mersen - Electrical Power - blade / compact / current-limiting
Cylindrical fuse - MEV100C series - Mersen - Electrical Power - blade / compact / current-limiting
Add to favorites
Compare this product


Characteristics

Configuration
cylindrical, blade, compact
Type
current-limiting
Other characteristics
DC
Applications
battery
Amperage

Max.: 30 A

Min.: 8 A

VDC

Max.: 1,000 V

Min.: 0 V

Description

• Power Cycling & Vibration: JASO D622 • IATF - ISO/TS 16949 Quality management undergoing certification EVpack-fuse line-up belongs to the new DC Over-Current protection (O.C.P.) range developed by MERSEN to address specific needs in EV/HEV and Battery Electrical Storage System. EVpack-fuse provides the ultimate protection of the battery pack offering reliable clearing of DC fault currents. It has been specifically engineered and tested to provide DC applications best-in-class protection performance: Up to 1,000VDC, Current rating (In)= 8 to 600A, Interrupting Rating (IR) = 20kA, L/R ≤1ms, Minimum Breaking Capacity (MBC) < 3kA for a perfect matching with DC contactor. • EV/HEV • Electrical Energy Storage • Battery Disconnect Unit (BDU) • Battery Junction Box for auxiliaries • Battery charger • Supercapacitor pack protection • Backup protection for DC relay / disconnect
