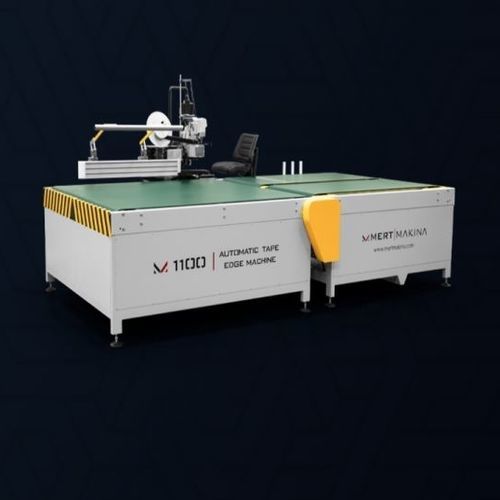

Single-station edge folding machine M-1100

single-station edge folding machine
single-station edge folding machine
single-station edge folding machine
single-station edge folding machine
single-station edge folding machine
single-station edge folding machine
single-station edge folding machine
Add to favorites
Compare this product


Characteristics

Type
single-station

Description

DEFINITION M-1100 AUTOMATIC MATTRESS TAPE EDGE MACHINE Sewing machine CTECH 300U (PFAFF 5625-optional) Production Capacity Up to 250 mattresses in 8 hours depends on operator performance Chain Stitch Technology Chain Stitch Technology is used for high-speed production Mattress Size 60x120 cm 200x210cm Dimension 290 cm x 375 cm x 191 cm (width x Lenght x height) Mattress Height 5 cm - 40 cm (50 cm is avaible on request) Max Mattress Weight 200 Kgs Weight 1150 Kgs Sewing Speed 3000 rpm Conveyor Speed 30 m / se Conveyor Belt Anti-Static Sewing Guide Number Number of sewing guide used for tape edge machine is like that : 18,20,22,24,26,...,42,45. Type Of Sewing Guide Jagged sewing guide is used for sewing head with looper (CTECH 300U) (PFAFF 5625) Thread It is recommended number 40 double-sides 75 tex polyester sewing thread as up thread; Number 80 double-sides 40 tex polyester sewing thread as bottom thread Needle It is recommended number 180/24 needlefor CTECH 300U and PFAFF 5625 Tape Edge It can be used tape edge according to sewing guide Overlock Making overlock around of thick material quilting easier to make tape edge and provides a smooth appearance Compressed Air 6 Bars Power Requirements 3 Phase 380 V / 9,5 KW Required Set-Up Area 3 m x 4 m(width x lenght) Required Loading Area 2.2 m x 3 m (width x lenght) Number of Personnel 1 Quality Standard CE Warranty 2 Years
