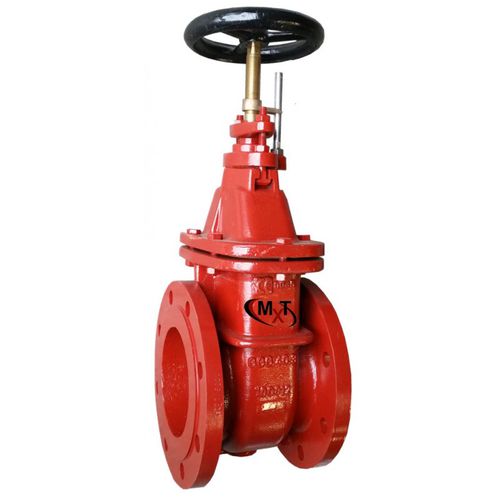

Gate valve MXT-10317-N-B series

with handwheelshut-offfor water

Gate valve with bronze seal and position indicator Design according to DIN EN 1171 DIN 3352 T2 Construction length according to: EN 558 Series 14 - DIN 3202 F4 Pressure class: DN40-DN150=PN16 DN175-DN300=PN10 DN350-DN500=PN6 DN600-DN700=PN4 Temperature: -10 ° C + 120 ° C Flanges according to: PN10/16 above DN150 PN10 These valves are made of A-class quality and very suitable and applicable for: Bilge / ballast systems, loading systems, salt / fresh water, lubricating oil, fuel oil, gas oil etc ... outboard / skin (hull) valves for river and sea ships If proven safety and quality is required then this is the correct valve.
