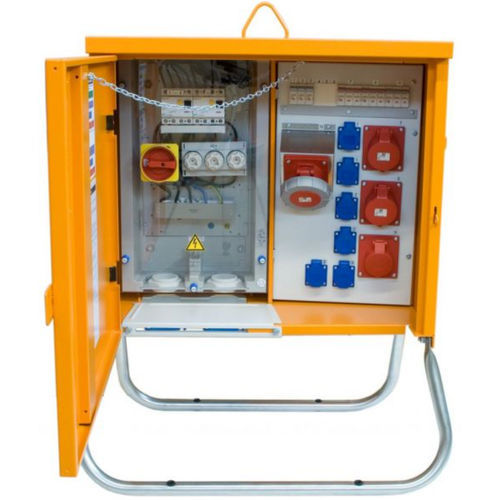

Distribution electric cabinet M-VEV 125/0011-1/K/X

panelwall-mountedweather-resistant

These distribution cabinets are used to distribute energy to downstream site distributors and to supply consumers with power via terminal connections or connectors. They are connected downstream of connection cabinets or group/main distributors. The connected load ranges from 24 to 277 kVA; socket outlets up to 125 A and/or terminal outlets, protective-insulated up to and including the RCDs. Robust housing made from galvanized steel sheet with weather-resistant powder coating in RAL 2000 (yellow orange), protection rating IP44 (front panel: IP21); pivotable crane eyelets and ergonomic handles; with wall mount (only for distributor types with a weight of up to approx. 70 kg). All installations up to and including the RCDs are protective-insulated. Galvanized frame with plastic sleeves or galvanized lugs for earth pegs for attaching the equipment to the ground. As a special feed point as per DIN VDE 0100 Part 704 for the connection of construction cranes (RCDs with I∆n ≤ 0.5 A) or large consumers for tunnel construction (RCDs with I∆n ≤ 0.03 A). They are normally connected downstream of a connection cabinet or group/main distribution cabinet.
