Distribution electric cabinet AVEV series

panelwall-mountedweather-resistant

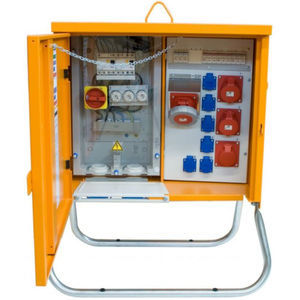

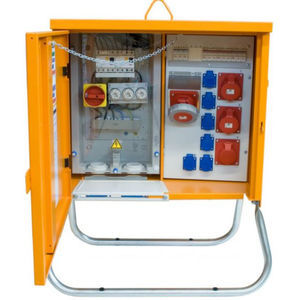

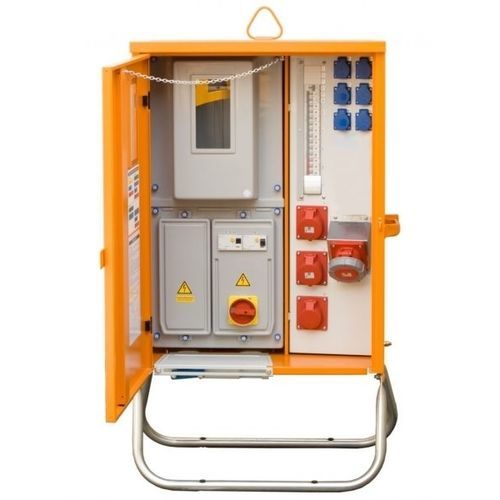

These products form the intersection between the supply network and the site distribution system. They measure the consumed amount of electrical energy and the distribution of that energy. Connected load from 24 to 173 kVA • Meter and converter station in IP54, protective-insulated up to and including RCDs, plus socket outlets up to 125A and/or terminal outlets. Robust housing made from galvanized steel sheet with weather-resistant powder coating in RAL 2000 (yellow orange), protection rating IP44 (front panel: IP21); pivotable crane eyelets and ergonomic handles; with wall mount (only for distributor types with a weight of up to approx. 70 kg). Measuring device as per DIN 43870, protection rating IP54. All installations are protective-insulated, up to and including the RCDs. Galvanized frame with plastic sleeves or galvanized lugs for earth pegs for attaching the equipment to the ground. As a connection point to the grid of the power supply company and as a special feed point as per DIN VDE 0100 Part 704 for the connection of AC and three-phase current consumers on building sites when the customer's connecting cable upstream of the measuring device is no more than 30 m long and the power supply grid operator does not demand a separate connection cabinet. In addition, an approved intermediate meter can be installed in order to take sub-measurements. The details below provide information on distributors with standard RCDs and with RCDs for frequency-controlled drives. Also: Connection distributor for the "Vattenfall" supply area
