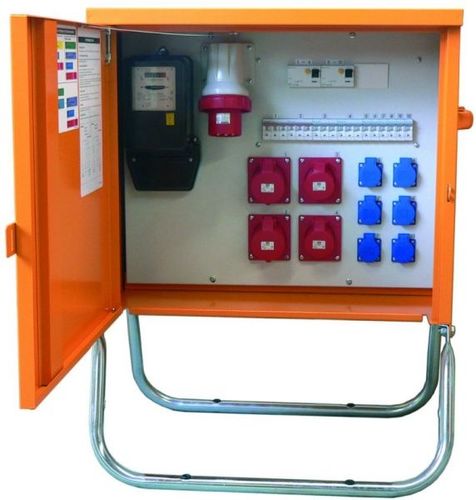

Distribution electric cabinet EV series

panelwall-mountedwith plug sockets

These distribution cabinets are for supplying consumers by means of connectors and are normally used for expansion builds or as floor distributors. They are connected downstream of distribution cabinets or connection distribution boxes via CEE connectors. Connected load from 3.6 to 44 kVA • Socket outlets to 63A Robust housing made from galvanized steel sheet with weather-resistant powder coating in RAL 2000 (yellow orange), protection rating IP44 (front panel: IP21); pivotable crane eyelets and ergonomic handles; with wall mount (only for distributor types with a weight of up to approx. 70 kg). All installations up to and including the RCDs are protective-insulated. Galvanized frame with plastic sleeves for earth pegs for attaching the equipment to the ground. Pluggable sub-distributors, also with accredited intermediate meters for taking sub-measurements, as special feed points as per DIN VDE 0100 Part 704 for the connection of AC and three-phase current consumers at building sites if they are connected downstream of a connection distribution box or distributor final distribution cabinet. Small-type current distributors constitute a special type for the realization of TT networks with RCD protection for the connection of 2 AC consumers on small building sites as per BGI 608. For use in conjunction with upstream site distributors, types without RCD protection (M-EV-/OF) can be used. The residual current protection is then ensured by means of the RCDs installed in the feeding site current distributor (I∆n ≤ 30mA).
