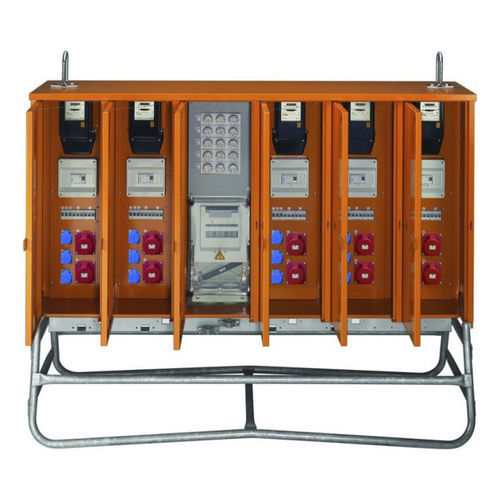

Distribution electric cabinet M-VEV series
with postpanelIP44

distribution electric cabinet
distribution electric cabinet
Add to favorites
Compare this product


Characteristics

Type
distribution
Mounting
with post, panel
Other characteristics
IP44, with plug sockets, combined, robust, weather-resistant

Description

Used to supply consumers of individual subcontractors via connectors. Groups of connectors are combined to enable the taking of sub-measurements with separate meters. The connected load ranges from 69 to 173 kVA; socket outlets up to 63 A, accredited meters for taking sub-measurements, protective-insulated up to and including the RCDs. Robust housing made from galvanized steel sheet with weather-resistant powder coating in RAL 2000 (yellow orange) with protection rating IP44 (front panel: IP21); pivotable crane eyelets. All installations up to and including the RCDs are protective-insulated. Galvanized frame with galvanized lugs for earth pegs for attaching the equipment to the ground. As a special feed point as per DIN VDE 0100 Part 704 for the connection of AC and three-phase current consumers on building sites. Meter cabinets for sub-measurements are also fitted with accredited intermediate meters for three-phase current for recording the energy consumption of subcontractors. Distribution cabinets for subcontractors are normally connected downstream of a connection cabinet or group/main distribution cabinet.
