Distribution electrical enclosure SVP series
equippedportableplastic

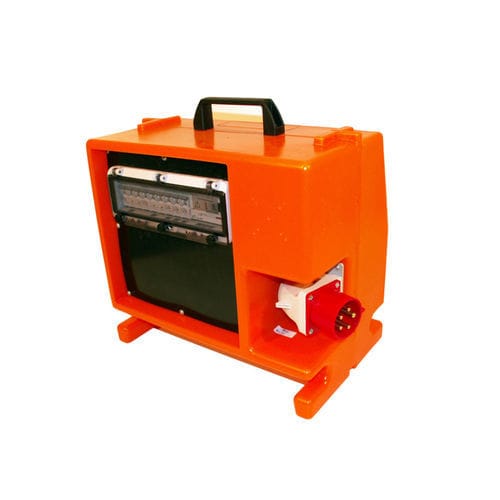

Distribution electrical enclosure - SVP series - MERZ GmbH - equipped / portable / plastic
Distribution electrical enclosure - SVP series - MERZ GmbH - equipped / portable / plastic
Distribution electrical enclosure - SVP series - MERZ GmbH - equipped / portable / plastic - image - 2
Distribution electrical enclosure - SVP series - MERZ GmbH - equipped / portable / plastic - image - 3
Distribution electrical enclosure - SVP series - MERZ GmbH - equipped / portable / plastic - image - 4
Distribution electrical enclosure - SVP series - MERZ GmbH - equipped / portable / plastic - image - 5
Add to favorites
Compare this product


Characteristics

Function
distribution
Type
equipped
Configuration
portable
Material
plastic
Protection level
impact-resistant
Application
power distribution, outdoor, for construction site
Other characteristics
pre-assembled, with electrical socket

Description

These are portable, compact distributors which primarily supply hand-operated power tools via connectors. They are connected downstream of distribution cabinets or connection distribution boxes via CEE connectors. Connected load from 11 to 44 kVA, socket outlets to 63A, completely protective-insulated Impact-resistant, robust plastic housing Integrated base for stable positioning, 70 mm ground clearance Practical integrated cable winder in base Optional feed-in via connector plugs Alternative feed-in via connection cable with CEE connectors All sockets on the front Splash-proof (protection rating IP44) Resistant to weather and ageing Stackable to save space Light and easy to handle Impact- and weather-resistant plastic housing in RAL 2000 (yellow orange), splash-proof (protection rating IP44; class II - protective insulated; RCDs and MCBs are safely protected behind a window module (max. 2 x 13TE). Pluggable socket distributors as special feed points as per DIN VDE 0100 Part 704 for the connection of AC and three-phase current consumers at building sites if they are connected downstream of a connection distribution box or distributor final distribution cabinet. For use in conjunction with upstream site current distributors, types without RCD protection (M-SVP-/OF) can be used. The residual current protection is then ensured by means of the RCDs installed in the feeding site current distributor (I∆n ≤ 30mA).
