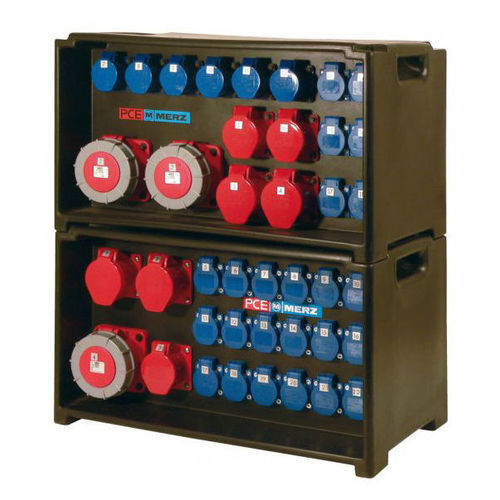

Distribution electrical enclosure SVE series

customportableplastic

Socket distributors with lots of combination possibilities; can be adapted to meet the special needs of the user, stackable, robust, safe, and with a suitable design - socket/event distributors M-SVE in power stages from 20 to 450 kVA. Indispensable on building sites and at markets, festivals, fairs, theatres, and major events. Suitable for use inside and outside. Impact-resistant, robust plastic housing in RAL 9017 (black), splash-proof, extremely light and easy to handle, stackable, resistant to weather and ageing, sockets on the front and protected built-in devices on the back (RCD and MCBs), with protection rating IP44, class II - protective-insulated, custom assembly, e.g. in inlet with Powerlock 400 A and as outlet with CEE connectors, 16, 32, 63, and 125 A, quick assembly. Portable power distributors for building sites, events, fairs, sports events, markets, and festivals/fairs. These distributors are really light and easy to handle. If, for example, four distributors are stacked together, a safe distribution tower can be constructed and can be expanded to make a distribution wall. The feed-in can take place via a connection cable with CEE connectors, a Powerlock, or a Multi-Contact connector. The connected loads range from 44 to 277 kVA. All sockets up to 63 A and all built-in devices are inside the housing profile and are thus protected from mechanical damage. The distributors can be configured to meet individual customer requirements. Just ask us! Always specify the required type for orders with a Powerlock feed-in.
