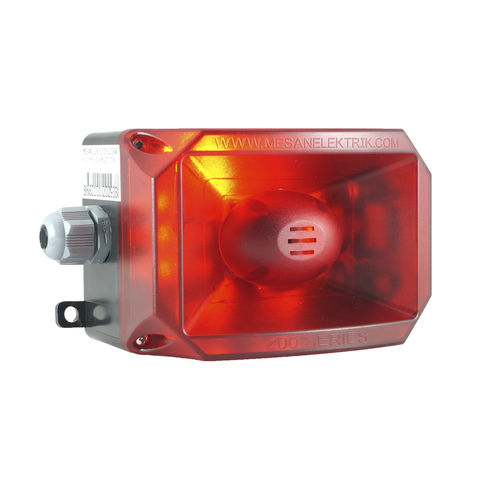

Alarm sounder with flashing beacon MS 229

with steady beacon

CUBE MULTI LED 43 TONE Features • Bright LED, Flashing or permanent modes • Rectangular shape helps diffuse sound to generate clear and distinctive sound signals • For industrial and general applications • 43 tone selectable via DIP switch. • Volume control via potentiometer • To change LED mode unscrew the cover and press white button while product is energized • To change sound unscrew the cover and make changes on red dipswitch • For lowering the volume unscrew the cover and use potentiometer Voltage Options: 110-220VAC, Siren Current: 40-20, Led Current: 170, Power: 1W 12-24VDC, Siren Current: 13-30, Led Current: 180-90, Power: 0.72W Color Options: Red, Green, Yellow, Blue, White Light Source: LED Working Mode: 3 flashing 6, flashing 10, flashing, double, flash, 20FPM, 40FPM, 60FPM, 90FPM, 150FPM, Cross flashing ,steady on Life Duration: 50.000+ Hours Tone: 43 Different Changeable Tone Volume: 110dB (at 1m) Lens Material: PC Body Material: ABS Protection Rate: IP54 Mounting: Surface/Wall Mount Dimensions: 140x80x80mm Certificates: CE
