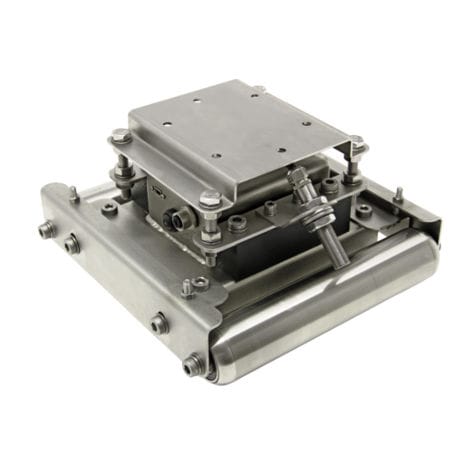

Infrared moisture sensor MF-P-HTD

Modbusanalogfor paper

Applications: Sensor for online moisture measurement of paper and cardboard. Includes infrared temperature sensor for measuring paper temperature and temperature compensation for moisture measurement. A paper control-roller set made of stainless steel is mounted for the required distance regulation. Features: Measuring range: 1 to 20 % (depends on the type) Paperweight range: 80 to 500 g/m² Paper temperature range: 0 to +100°C / 32 to 212°F Environment temperature range: 0 to +70 °C / 32 to 158°F Power supply: 12 to 28 VDC or optional Power over Ethernet (PoE) Protection type: IP 65 Scope of supply: MF-P-HTD sensor with mounted paper temperature sensor and paper control-roller set The required interface must be ordered separately, following are available: article no. 14436 Modbus TCP, article no. 14438 analog output (4-20mA), further interfaces on request
