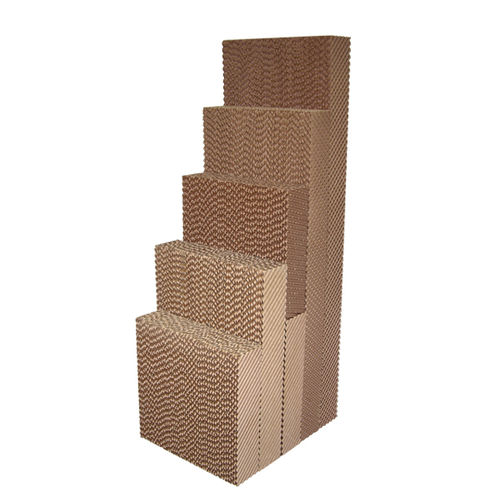

Cooling plate PAD MANN

PAD MANN evaporative cooling panels are a totally natural air cooling system with water supply and minimum energy consumption. Its operation is based on circulating an air flow through its interior and depending on the speed, type of panel and thickness, the cooling and humidity increase of the air that passes through it is achieved. We have two different types of panels, the type 5090 which is the one that offers the best cooling performance and is used for evaporative coolers for air conditioning in general and the type 7090 with lower cooling performance but with less pressure drop, its Use is specifically for farms and greenhouses where they have evaporative air conditioning systems with fans that cause a depression inside the premises. Panel formed by treated cellulose sheets intended to cool and add moisture to an air flow. Base sheet: Treated Cellulose Maximum water temperature: 55ºC Maximum air temperature: 150ºC PH level: 6-9 Dry panel weight: 38 kg / m3 Wet panel weight: 90 kg / m3
