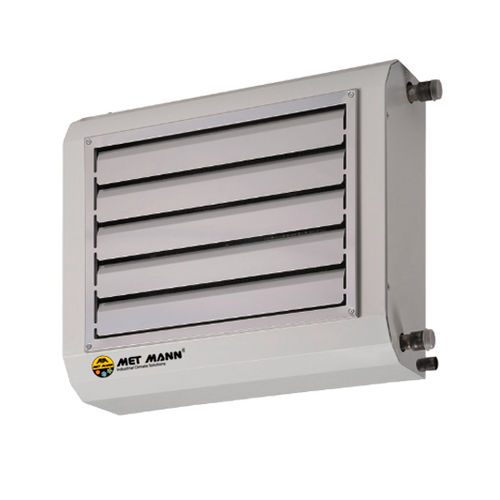

Hot water air heater unit ATR-C/F Series

wall-mountedceiling-mountedindustrial

Hot or chilled water coil fan heaters are an excellent choice for heating and cooling a variety of spaces, including commercial, industrial and agricultural environments. In this system, hot or cold water is generated by an external device, such as a boiler or water chiller. Then, by means of a circulator pump, the water is distributed inside the coil. Air, driven by an axial fan, passes through this coil, allowing the temperature to be transferred to the air. In this way, the resulting air is diffused in the room, providing the desired air conditioning or heating. Characteristics • External structure in white lacquered steel RAL 9002. • Axial fan with 3 speeds. • Horizontal finned grille to regulate air direction. • High performance heat and cold exchanger made of aluminium fins. • Maximum operating pressure of 15 Bar. • Electrical connection strip. • Hydraulic connections for flow, return and condensate discharge. • Wide range of controls and regulation systems.
