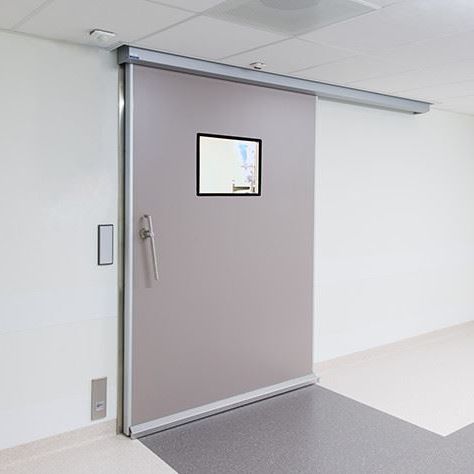

Sliding door system MEDICARE EI1

automaticfire-resistanthermetically-sealed

Metaflex Medicare EI1 is the only airtight sliding door system that meets the highest quality and fire-resistance standards at a European level. Automatic sliding door system Airtight/ hermetically sealing Can be made radiation-proof 30 and 60 minutes fire-resistant Fire-resistance EN 1634-1 is the European standard for fire-resistance of doors. In order to meet this standard , the integrity (E), insulation (I) and radiation (W) are considered. During a fire test it is inspected whether the door can withstand the flames (E). The insulation value (I) of the door is tested by measuring the temperature. For an I1 certification, the temperature of the blade may not on average exceed 140˚C. Radiation (W) is measured according to the EN 1363-2 standard. The maximum radiation that can be emitted by the door is 15 kW/m2. The Metaflex Medicare EI1 is available in 30 or 60 minutes fire-resistance. It is the first hermetically sealing sliding door system that has achieved the highest EI1 standards. Airtight seal When opening and closing the Medicare EI1 sliding door, hardly any air movement is created. In situations with conditioned or contaminated air behind the door, this is very important. The airtight seal maintains the overpressure up to at least 100 pascal without leakage (ANSI/UL1784). The unique closing system ensures that the door also retains its airtight seal in case of significant under- or overpressure. Uncontrolled air flow through your doors can thus be prevented. This door is very suitable for spaces in which fire-safety is paramount, such as operating rooms, intensive care, X-ray rooms, pharmacies and the emergency room.
