Control module EB80

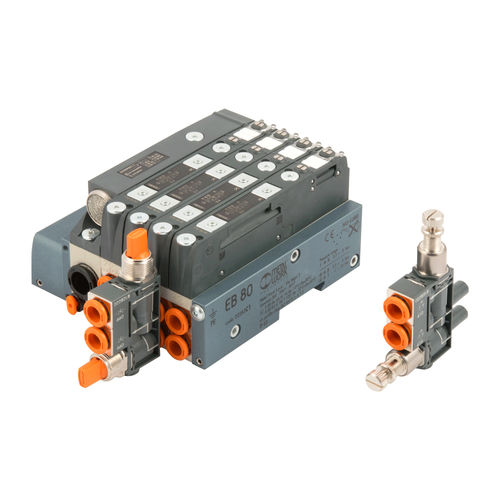

The multi-function module is an important extension of the possibilities offered by the EB 80 systems to manage the performance of actuators controlled by individual solenoid valves. For each port, it can regulate the pressure and the flow rate, provide manual sectioning, display the presence of pressurized air and much more besides. In line with the modular EB 80 configuration, the multi-function module is designed to ensure maximum flexibility: it can be installed at any time; the function connected to port 2 may differ from that connected to port 4 (e.g. regulating the pressure at output 2 and the air flow at port 4); the modules can be mounted in series one after the other; the cartridge fittings for the pipes can be replaced at any time and are the same as those used in the EB 80 valve bases. Given that the air input pipes have a Ø 8 mm, the multi-function module must be inserted in the EB 80 bases with cartridges suitable for Ø 8 fittings; but if the base to which you want to connect has a cartridge of a different diameter, you only need to buy a multi-function fitting with Ø 8 cartridges and replace those of the base with those of the module. The code and the pneumatic diagram are laser etched on the technopolymer body.
