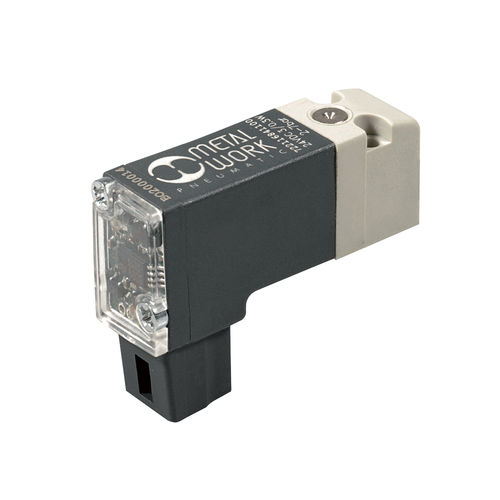

Direct-operated solenoid valve PLT-10 series3-wayNCair
Add to favorites
Compare this product
Characteristics
- Control
- direct-operated
- Ports/positions
- 3-way
- Function
- NC
- Medium
- air
- Body
- miniature, IP65, IP51
- Other characteristics
- ISO
- DN
10 mm
(0.394 in)- Voltage
12 V
- Temperature
Max.: 50 °C
(122 °F)Min.: 5 °C
(41 °F)- Pressure
3 bar, 7 bar
(43.5 psi, 101.5 psi)
Description
PIT-10 solenoid valves are the latest development in modern pneumatic design, where the main trends focus on miniaturisation, enhanced performance, reduced power and reliability.
Numerous versions are available, all with an ISO 15218 pneumatic interface. The power required to operate the PIT-10 has been greatly reduced, ranging from 0.3 to 0.8 Watts.
It is available with a LED indicating when it is active. Monostable manual control is also possible. None of the versions will get damaged if the polarity is accidentally inverted.
Quantity per package: 0
Minimum order quantity: 0
Unit of measure: items
Insertion time: 100% ED
Insulation class: F 155
Max drive frequency (Hz): 30
Max temperature (°C): 50
Min temperature (°C): 05
Power: 0.7 W
Protection degree: IP 51
Time (Cycles): Over 50 million
Voltage tolerance: ±15%
