Combustion wire thermal spray unit MK61

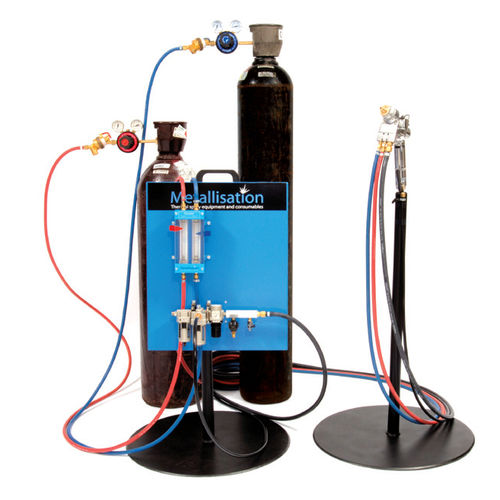

The Metallisation MK61-FS is an oxygen-acetylene fuelled flamespray system, primarily for spraying engineering coatings of steels, bronzes, copper and importantly, molybdenum. The lightweight, robust pistol offers the possibility to reclaim damaged parts for small to medium sized applications. Molybdenum can also be sprayed with the MK61-FS as a soft bond coat through to a very hard, wear resistant coating. The MK61-FS system can be used for anti-corrosion coatings where propane is not readily available. The ‘FS’ stands for Free-Standing as the new control board can be free standing or wall mounted to suit all site or in-house applications. Extended supplies package options are being increasingly used to maximise efficiency when working on large job sites such as refineries, petro-chemical sites and offshore structures. The extended supplies packages, up to 50m from cylinders to pistol, allows the cylinders to be remotely located whilst the operator moves around the job with just the pistol and occasionally moving the control panel. The length of supplies is limited by the pressure of the acetylene. Longer supplies are possible with the propane fuelled MK73-FS as well as faster spray rates for corrosion coatings. New in 2014 is a more ‘site friendly’ control panel. It is more robust and offers further protection to the flowmeter and ARF unit. It can be wall mounted or will free-stand on the floor. The flow of hoses is neater than the previous unit.
