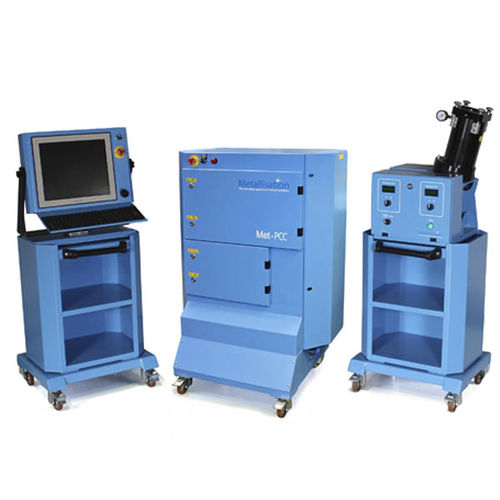

Thermal supersonic flame spray unit Met-PCC

liquid fuel

The Metallisation Met-PCC(HVOF) system is the latest development to our range of HVOF systems. The Met-PCC(HVOF) system applies all of the simple control / operator interface features of our previous HVOF and Plasma systems. The ‘–L’ version can be interfaced with our own MET-JET4L pistol and/or other non-Metallisation liquid fuel pistols. The ‘-G’ version can be interfaced to a range of non-Metallisation gas fuelled HVOF pistols. The Met-PCC(HVOF) system has re-packaged the control elements and utilised the latest technology to optimise functionality and reliability. At the front end, the operator interface utilises an intuitive Graphical User Interface (GUI), including the option to integrate video images into the display. The interface runs on a familiar touchscreen Windows PC platform with Intel Dual Atom processor which is great for usability, integration and communication. Behind the scenes, the latest PLC runs the system with communication between devices via the reliable Ethernet protocol. As you would expect from a system of this standard, the gases/fluids are all mass-flow controlled for optimum repeatability of coatings. All spray parameters can have real-time trending on the system.
