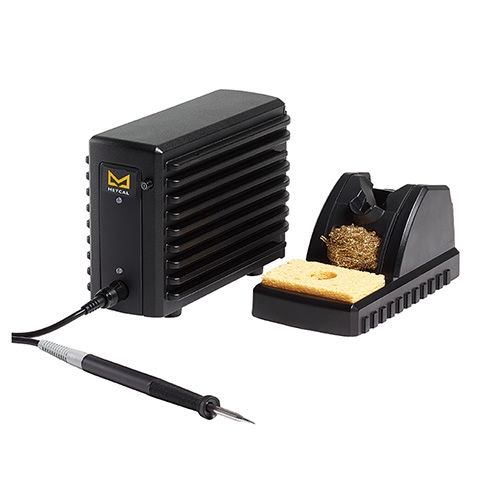

Soldering station MFR-1110

The MFR-1100 Single Output Series is designed to minimize your training investment, maximize application solutions and increase productivity. This Series is compact and versatile and can be used with either a soldering tip, cartridge or tweezers handpiece. A shop air desoldering option is also available as an upgrade kit. Input Line Voltage: - 100 - 240 VAC, grounded circuit, 50/60 Hz Output Power: - Variable, 60 W max.* Output Frequency: - 450 KHz Heating Method: - Induction, smartHeatR Connections: - Single Port Power Supply Dim. W x D x H: - 90 x 200 x 152.5 mm (3.5" x 7.9" x 6") Power Supply Weight: - 2.3 kg (5.05 lb) Certification / Marking: - cTUVus, CE Tip-to- Ground Potential: - < 2 mV Tip-to-Ground Resistance: - < 2 Ohm Ground Detection: - Permanent Surface Resistivity: - 105 - 109 Ohm Idle Temperature Stability: - 1.1 °C ( 2 °F) in still air Tip Temperature Accuracy: - Meets or exceeds IPC J-STD-001 Standard Power Cord Length: - 183 cm, 18/3 SJT Warranty: - 1 year Ambient Operating Temp: - 10 - 40 °C (50 - 104 °F) Max. Enclosure Temp: - 55 °C (131 °F) Hand-Piece Cable Length: - 122 cm (48”), burn proof, ESD-safe Hand-Piece - RF Connector: - 8-pin circular DIN SmartHeat® Technology provides exceptional power for high thermal demand applications, single or dual simultaneous outputs allow for single/dual hand-piece use Five hand-pieces available for increased application solutions for soldering, de-soldering (upgrade kit MX-UK5) and rework on one system, Each hand-piece has a comprehensive range of cartridges or tips for maximum flexibility. Ergonomic handpieces for operator safety and comfort
