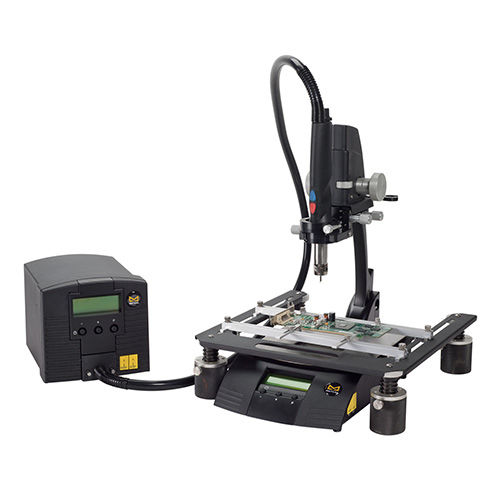

Compact hot air hand tool MRS-1100A

The MRS-1100A Modular Rework System is an integrated convection rework system for the removal and reflow of BGA/CSP and SMT components. The MRS-1100A is comprised of a convection tool, a preheater, an adjustable tool holder, and a freestanding board holder to create a manually assisted rework system. A series of nozzles, targeting a variety of applications round out the product offering for this system. With standard features such as programmability, a digital display, program storage of up to 50 profiles, this system is not only versatile, but also easy and efficient to work with. A choice of board holders and accessories are available that make the system capable of handling multiple sizes of PCBs. The MRS-1100A allows you the choice of using either the embedded profiling capability that can be configured to operate at a fixed temperature, or a four-zone programming option. The unit also allows the temperature to be controlled either at the heat output (internal) or at the board (external). The “external” control function uses a thermocouple which can be placed on the board or a component Heating Method: - Convection Airflow: - 5 - 25 l/min Noise Level: - < 55 dBA at maximum airflow Surface Resistivity: - 107 - 1011 Ohm Vacuum Pump for Pick-Up Components: - 381 mm Hg (15" Hg) Display: - LCD, 20 X 4 display segments Operational Modes: - Setup, Run, Manual, Active Setup Stoarable Solder Profiles: - 50 Size W x D x H: - 178 x 229 x 152 mm ( 7" x 9" x 6") Weight: - 5.4 kg (12 lb) Certification/Marking: - TUV, CE Storage Temperature: - 0 - 50 °C (32 - 122 °F) Power Cord Length: - 183 cm, 18/3 SJT Warranty: - 1 Year
