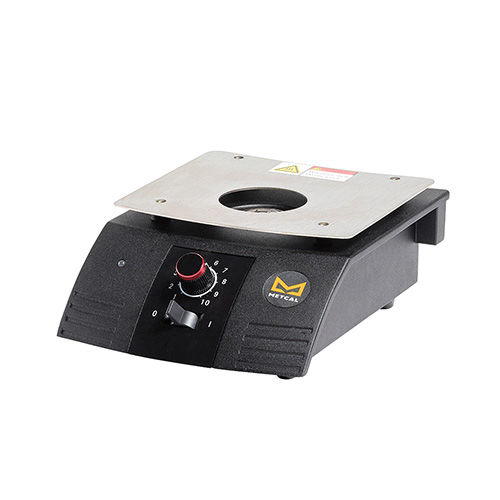

Air preheater PCT-100-21

electricfor wiresafety

The PCT-100 Focus Pre-heater targets heat for improved speed and efficiency for high thermal demand applications, including lead-free. Used for SMT and through-hole hand processes, the PCT-100 uses convection air heating to heat a PCB first, for better soldering, improved process control and increased productivity. The PCT-100 Focus Pre-heater adds heat volume, without turning up the temperature, to perform assembly tasks at the appropriate peak temperature without distorting the board. InputVoltage: - PCT-100-11, 110 VAC, 60 Hz InputVoltage: - PCT-100-21, 240 VAC, 50 Hz Rated Power: - 450 W Surce Temperature: - Up to 300 °C (572 °F) Heating Method: - Convection Airflow: - 280 l/min ( 9.88 cfm) Noise Level: - Low Surface Resistivity: - 106 - 1011 Ohm Size W x D x H: 155 x 205 x 65 mm (6.1" x 8" x 2.6") Weight: - 1.6 kg (3.5 lb) Certification/Marking: - cTUVus, CE Ambient Operating Temperature: - 0 - 40 °C (32 - 104 °F) Storage Temperature: - -10 - 60 °C (14 - 140 °F) Power Cord Length: - 183 cm, 18/3 SJT Warranty: - 1 Year Accelerates and enhances the lead-free SMT & through-hole rework process Temperature ramps up quickly, maximizing productivity Adjustable knob controls the required temperature to below 300°C Controlled cool-down eliminates thermal shock to PCB and components Thermocouple feedback temperature control regulates output temperature System safety feature automatically shuts off heating when fan is stopped ESD safe Focus Pre-heater Power Cord User Guide
