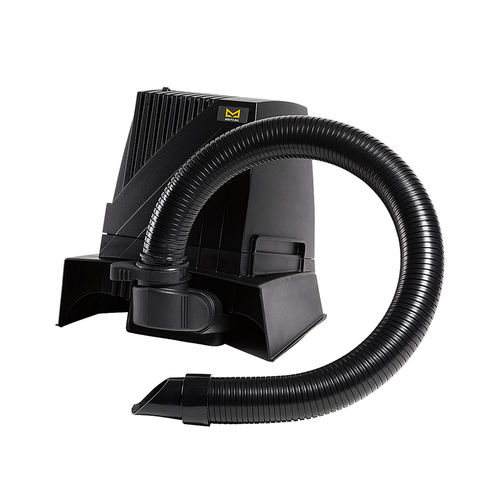

The BVX-101 is a single user, PRE-HEPA-GAS volume extraction system designed to be used directly on the workbench. The unit is designed with an innovative adapter which allows the user to choose between plenum or arm extraction options.
Flow Rate (With Filter): - 85 m3/h (50 cfm)
Static Pressure (suction force): - 1250 Pa (5" WC)
HEPA Efficiency: - 99.97 % at 0.3 micron
Noise Level: - < 55 dBA
Dimensions (W x D x H): - 300 x 230 x 290 mm (11.8" x 9.1" x 11.4")
Weight : - 9 kg ( 20 lb)
Certification/Marking: - UL, CSA, CE
Power Cord Length: - 183 cm, 18/3 SJT
Warranty: - 1 Year
Portable, single user fume extraction system
Low noise unit
No external ducting or compressor needed
Unit easily fits on any bench-top or under-bench
12” wide (300mm) plenum
Innovative adapter transforms the plenum into an arm
Powerful 85m3/hr-airflow rate
Immediate extraction of fumes, particles and vapors
Two filtration configurations: heavy soldering and light dust or light duty organic solvent and adhesive applications
Bi-coloured LED light indicates when the filters are blocked and require replacing
ase Unit
Set of filters
