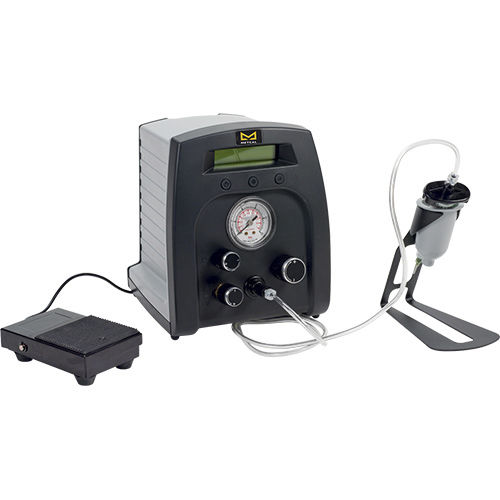

Glue dispenser DX-250

digitalvacuumcompact

The DX-250/255 series controllers are economical, highly precise and repeatable. They are equipped with a digital timer and an continuously adjustable vacum suck-back, to prevent dripping of low-viscosity media and high viscosiy media from pulling threads. A RS-232 interface enables connection to a PLC. The dispensing system is available in two versions: Working pressure adjustable from 0 - 6.9 bar for common applications (DX-250). Working pressure adjustable via precision valve from 0 - 1 bar for low-viscosity media (DX-255). PLEASE NOTE: The TSD800-6 Air Filter (not included) must be installed with the dispenser to ensure proper air filtration. Please remember to purchase a TSD800-6 Air Filter together with the dispenser. Input Voltage: - 100 - 240 VAC, 50/60 Hz Operating Pressure: - 0 - 6.9 bar (0 - 100 psi) Cycle Rate: - 600 cyle/minute Timing Range: - 0.020 - 60 seconds Vacuum Suck-Back Control: - Steplessly variable Timing Tolerances: - +/- 0.001 % Cycle Mode: - TIMED, PURGE Dispensing DOT counter: - Yes I/O Interface: - Initiated by voltage or contact closure Certification: - CE, TUV-GS, NRTL Size (W x L x H): - 152 x 165 x 1787 mm (6" x 6.5" x 7") Weight: - 1.2 kg ( 2.6 lb) Warranty: - 1 year Small footprint and lightweight Economical dispenser Highly accurate and repeatable micro-air dispensing Digital timer and vacuum controls Available in two versions of operating pressure: 0 to 100 psi for general applications, and 0 to 15 psi for specific low viscosity applications Packaged ready to use with: universal power supply, foot switch, air hose, sample tips, syringe barrels & adapter O Interface for robotic applications
