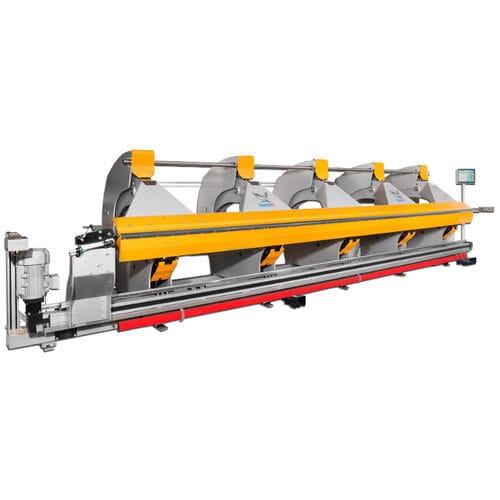

Sheet metal folding machine TZ 125

electric

The folding machine Thalmann TZ 125 is a long folder, it can fold sheet metal with a length of 15 to 32 feet and longer. This electric long folder has a vertical force drive system and rigid C-Frames which distribute the clamping force over the clamping and folding beams. Then the clamping force is more important. It is also possible to make folds of 45°. Thalmann folders are built with a strong torsion shaft of 2” on the upper clamping beam, which ensures a perfect parallelism, even if the hydraulic cylinders connected to the top beam work differently. The Thalmann TZ 125 folding machine is available in 4 models to fold long sheet metal of different sizes : 15′, 21′, 27′ and 32.75′ or custom length. Specifications of TZ 125 long folder Bending length : 15′, 21′, 27′ and 32.75′ or custom length Folding capacity : 18 ga Number of C-Frame : 3, 4, 5 and 6
