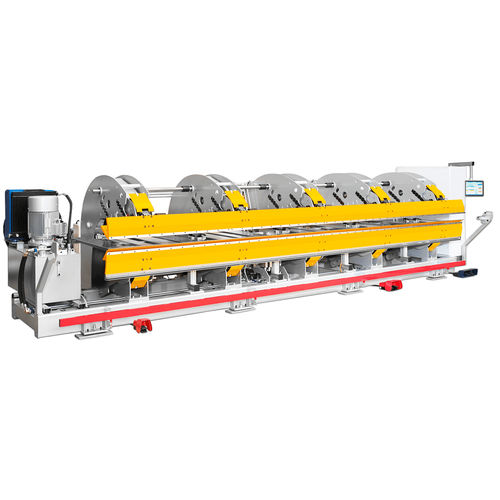

Sheet metal folding machine TD 200

hydraulic

The folding machine Thalmann TD 200 is a double folder, it can fold long sheet metal of 14 ga with a length of 13.1 to 40 feet. This hydraulic double folder can fold complex parts without few manipulations, because it folds upward and downwards. It is also possible to make folds of 45°. Thalmann double folders are driven by a unique technology of synchronous shaft which synchronizes the folding and the clamping beam built, ensures a high accuracy and a perfect parallelism. These double folders are equipped with a gripper system for a precise positioning of the metal sheet. The Thalmann TD 200 folding machine is available in 5 models to fold long sheet metal of different sizes : 13.1′, 21′, 26.8′, 32.75′, 40′ or longer Specifications of TD 200 double folder Bending length :13.1′, 21′, 26.8′, 32.75′ 40′ or longer Power : 26 HP à 36 HP Folding capacity : 14 ga Number of C-Frame : 4, 6, 8, 10 and 12
