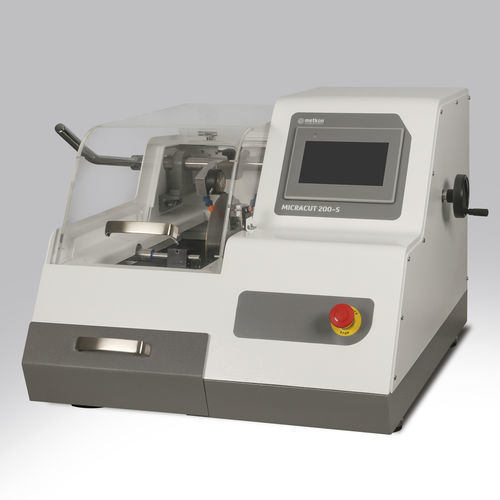

Automatic cutting machine MICRACUT 200-S

vertical bladefor metalsheet metal

Automatic High-Speed Precision Cutter Programmable with 7" HMI touch screen control, with Siemens PLC control unit, with motorized cutting system, automatic or manual cutting modes, motorized precise grinding with 5 microns accuracy, accurate positioning of the specimen in X-axis with 5 microns positioning accuracy, 0-50 mm positioning range in X-axis with readout on HMI touch screen, smart guide for X-axis positioning, integrated feed path control, power dependent adjustable feedrate, variable cutting force, rapid pulse cutting mode, bar graph overload display, powerful 0.55 kW cutting motor, with variable cutting speed 100-5000 rpm, with electronic brake system, cutting capacity up to 75 mm solid stock, with cut-off wheels up to Ø200 mm or diamond cup grinding wheels up to Ø175 mm, with built-in dressing unit, with built-in removable cooling unit, transparent protection hood, with extra advanced cutting methods, Ready for operation. Includes a standard set of cutting consumables composed of; *1 pc. Diamond cutting Disc 200 mm dia. *1 lt of Metcool II cooling fluid. 230 V, 50/60 Hz, AC.
