Analog signal conditioner M72 series

multi-channelamplifierconfigurable

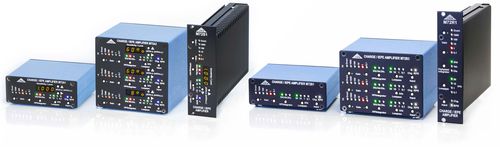

Integrating Charge / IEPE Amplifiers Application • Signal conditioning for dynamic measurement with piezoelectric sensors for acceleration, force and pressure or sound • Front-end with anti-aliasing filter for PC data acquisition systems • Mobile measuring systems • Multichannel measuring systems Properties • Very compact design • Inputs for charge mode transducers, transducers with constant current supply (IEPE) and AC voltage signals • 5 charge and 4 IEPE/AC voltage ranges with low noise provide a total dynamic range of 140 and 120 dB, respectively • Output without integration or with single or double integration for the measurement of acceleration, velocity or displacement • Low-pass filter with 0.1 / 1 / 10 / 50 kHz, high-pass with 0.1 and 3 Hz • Input of transducer sensitivity with LED display for output scaling (M72A1 / M72A3 / M72S1) • TEDS support, M72A1 / M72A3 / M72S1 automatically reads the sensitivity of a connected transducer • Operation via front panel buttons • Powered by 7..30 VDC source • 19” benchtop cases for 8 units M72R1 or M72S1 with USB interface for PC control of all settings
