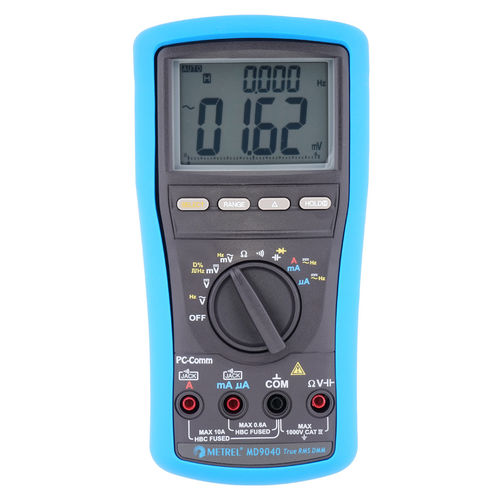

Industrial multimeter MD 9040
digitalportable1000 V

industrial multimeter
industrial multimeter
industrial multimeter
industrial multimeter
industrial multimeter
industrial multimeter
Add to favorites
Compare this product


Characteristics

Display
digital
Form
portable
Max voltage
1000 V
Max current
10 A
Safety rating
cat IV
Additional features
frequency
Applications
industrial
Other characteristics
true RMS, AC, DC
Max DC voltage

Min.: 60 mV

Max.: 999,900 mV

Max AC voltage

Min.: 60 mV

Max.: 999,900 mV

Max DC current

Min.: 0.6 mA

Max.: 10,000 mA

Max AC current

Min.: 0.6 mA

Max.: 10,000 mA

Max resistance measure

Min.: 600 Ohm

Max.: 60,000,000 Ohm

Max capacity measure

Min.: 60 nF

Max.: 25,000,000 nF

Max frequency measure

Min.: 15 Hz

Max.: 50,000 Hz

Weight

635 g
(22.4 oz)

Description

CAT IV / 1000 V overvoltage category and TRMS measurement of AC current and voltage are key features of the MD 9040. MEASURING FUNCTIONS • TRMS AC, DC voltage measurement • TRMS AC, DC current measurement • Capacitance measurement • Resistance measurement • Diode test • Mains supply frequency measurement • Frequency of digital signals measurement • Continuity test (acoustic signalling) KEY FEATURES • TRMS: accurate readings on sinusoidal and non-sinusoidal signals • Lead alert: incorrect lead connection alert • Auto-ranging: user can switch between auto and manual ranging • Relative zero mode: relative function for comparing the difference between signals or removing background noise • Data Hold: data hold feature freezes the display for later view • PC Link: test results can be downloaded to the computer via the optional PC software • Frequency measurement: up to 1 MHz • Safety: CAT IV / 1000 V overvoltage protection • Easy to read: large bright 4 digits 9999 counts dual LCD display
