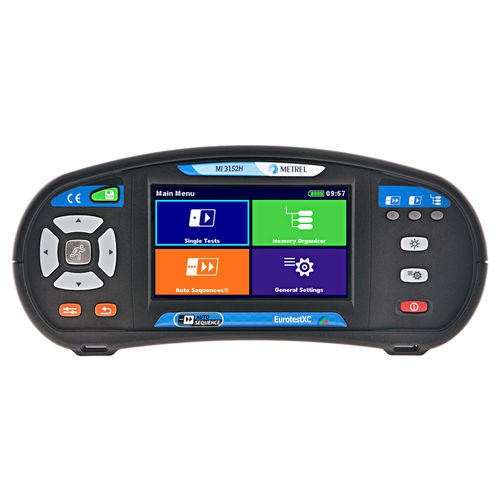

Voltage tester MI 3152H EurotestXC

continuityinsulation resistancephase sequence

The MI 3152H EurotestXC 2,5 kV is an instrument from the new generation of Metrel’s multifunctional measuring instruments. MEASURING FUNCTIONS • Insulation resistance with DC voltage from 50 V to 2500 V and PI, DAR calculation • Varistor test; • Continuity of PE conductors with 200 mA DC test current with polarity change • Continuity of PE conductors with 7 mA test current without RCD tripping • Line/Loop impedance combined also in one function Z AUTO • Loop impedance with Trip Lock RCD function • TRMS voltage and frequency measurements • Phase sequence • Power and THD measurement (up to the 12th harmonic) • RCD testing (general and selective, type AC, A, F, MI RCD, EV RCD, PRCD, PRCD-K, PRCD-S) • Earth resistance (3-wire and 2-clamps method) • Specific earth resistance with Ro-adapter (option) • TRMS leakage and load currents (option) • First fault leakage current (ISFL) • Testing of Insulation Monitoring Devices (IMDs) • Illumination (option) • High resolution Loop impendance (mΩ) (option) • EVSE AUTO SEQUENCEs and function inspections • Determining location of cables (option) • QR and/or barcode scanner support (option) KEY FEATURES • Predefined profile dependent AUTO SEQUENCEs • Predefined Automatic tests: Auto TT (U, Zln, Zs, Uc) Auto TN/RCD (U, Zln, Zs, Rpe) Auto TN (U, Zln, Zlpe, Rpe) Auto IT (U, Zln, Isc, Isfl, IMD) • Built-in fuse tables for automatic evaluation of the line / loop impedance result • Automatic polarity reversal on continuity test • Automated RCD testing procedure • Automated Impedance testing procedure (Z AUTO) • BT communication with PC, Android tablets and smart phones via built-in BT • PC SW Metrel ES Manager • Optional aMESM Android APP
