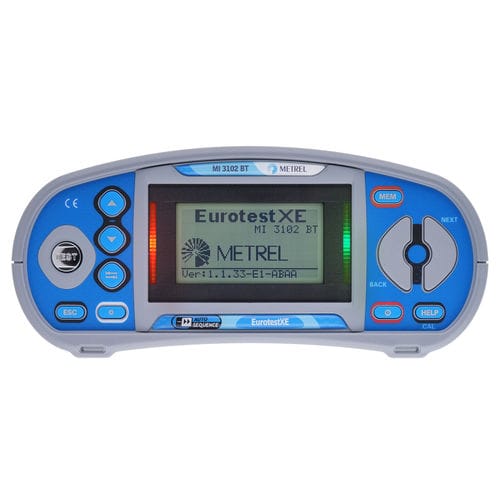

Voltage tester MI 3102 BT EurotestXE

continuityinsulation resistancephase sequence

The MI 3102 BT EurotestXE is a multifunctional measuring instrument which performs a complete set of installation safety tests according to IEC/EN 61557. MEASURING FUNCTIONS • Insulation resistance with DC voltage from 50 V to 1000 V • Continuity of PE conductors with 200 mA DC test current with polarity change • Continuity of PE conductors with 7 mA test current without RCD tripping • Line/Loop impedance • Loop impedance with Trip Lock RCD function • TRMS voltage and frequency • Phase sequence • Power and harmonics • RCD testing (general and selective, type AC, A, F, B, B+) • Earth resistance (3-wire and 2-clamps method) • Specific earth resistance with Ro-adapter (option) • TRMS leakage and load currents (option) • First fault leakage current (ISFL) • Testing of Insulation Monitoring Devices (IMDs) • Illumination (option) KEY FEATURES • Predefined mini AUTOSEQUENCEs: Auto TT (U, Zln, Zs, Uc) Auto TN/RCD (U, Zln, Zs, Rpe) Auto TN (U, Zln, Zlpe, Rpe) Auto IT (U, Zln, Isc, Isfl, IMD) • Power measurements and harmonics analysis • Built-in help screens for referencing on site • Built-in fuse tables for automatic evaluation of the line / loop impedance result • Monitoring of all 3 voltages in real-time • Automatic polarity reversal on continuity test • Loop impedance test without tripping the RCD • Built-in charger and rechargeable batteries as standard accessory • Automated RCD testing procedure • BT communication with PC, Android tablets and smart phones via built-in BT • PC SW EuroLink PRO for downloading of test results and report creation • EuroLink Android APP, data management tool (option)
