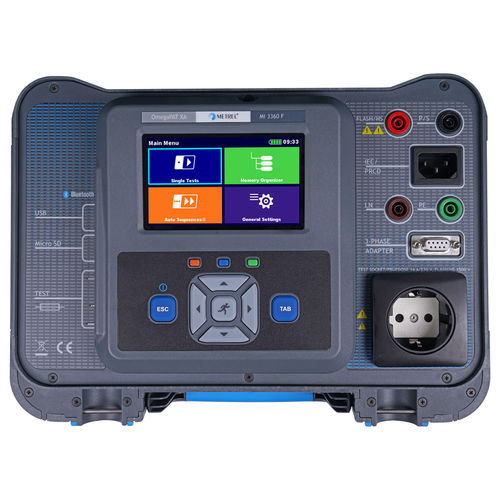

Continuity tester MI 3360 F OmegaGT XA

leakage currentearth resistancePAT

New series of OmegaGT XA brings 4 models of the instrument, intended for professional use in the most demanding applications. MEASURING FUNCTIONS • Visual inspections • Fuse test • Continuity / Protective earth resistance 200 mA • Continuity / Protective earth resistance 10 A, 25 A (25 A, M, F, models only) • Insulation Resistance (Riso, Riso-S) • Sub-Leakage Current, Substitute Leakage Current - S • Differential Leakage current • PE leakage current • Touch leakage current • Insulation resistance, IEC/EN 62353 • Touch leakage current, IEC/EN 62353 • Equipment leakage (direct, differential, alternative) • IEC/EN 62353 (M, model only) • Applied part leakage (direct, alternative), IEC/EN 62353 (M, model only) • Patient leakage (IpME), IEC/EN 62353, IEC 60601 (M, model only) • Insulation resistance, (optional A 1422) IEC/EN 60974-4 • Welding circuit leakage, (optional A 1422) IEC/EN 60974-4 • Primary leakage, (optional A 1422) IEC/EN 60974-4 • No-load voltage, (optional A 1422) IEC/EN 60974-4 • Power (P, S, Q, PF, THDu, THDi, CosØ, I, U,) • PRCD test, (2-pole, 3-pole, K/Di (varistor), S (3-pole)) • PRCD PE probe test, PRCD open conductor test, PE conductor (PRCD) test • RCD test, (type A, AC, B, B+, F) • Flash test, (1500 V, 3000 V), (F, model only) • Polarity / Active polarity test • Clamp current (with optional A 1579) KEY FEATURES • Touch screen: high resolution colour touch screen, 4.3” TFT • Double manipulation: keyboard and touch screen enable the user to control the instrument in any manner they like • Pre-defined AUTOSEQUENCE®s: enable the user simple and quick execution of test sequence for the chosen device
