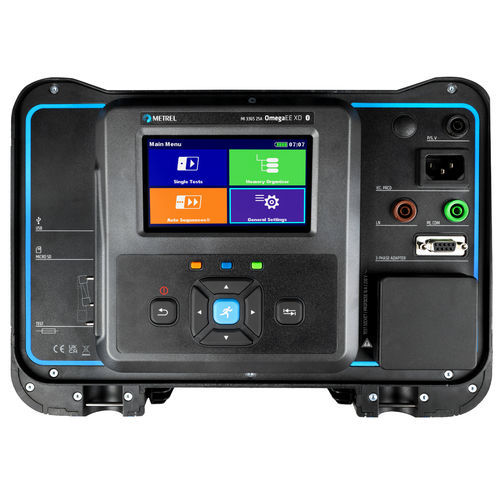

High-voltage tester MI 3365 25A OmegaEE XD

insulation resistance and continuityelectrical insulationfor electrical equipment

The MI 3365 OmegaEE XD combines support of tests and measurements in accordance with the EN 50678 (VDE 0701) and EN 50699 (VDE 0702) standards with versatility and user-friendliness and comes in four models. MEASURING FUNCTIONS • Visual inspections • Continuity // Protective earth resistance 200mA • Continuity // Protective earth resistance 10A, 25A 1 • Insulation Resistance (Riso, Riso-S) • Protective conductor current (Direct, Residual, Alternative) • Touch leakage current (Direct, Alternative) • Leakage current produced by a floating input, PE current (Direct, Residual) • Leakage current produced by a floating input, Touch current (Direct) • Leaks & Power (Itou, Idiff, P, S, Q, PF, THDu, THDi, CosØ, I, U) • Power (P, S, Q, PF, THDu, THDi, CosØ, I, U) • PRCD test, (2 pole, 3 pole, K/ Di (varistor), S (3-pole)) • PRCD test (PE conductor, Open conductor, PE probe) • RCD test (type A, AC, B, B+, F) • IC-CPD test (EV-RCD, PE conductor) • Voltage, SELV/PELV • Flash test, (1500V, 3000V) 2 • Polarity / Active polarity test • EVSE Diagnostic test • Fuse test • Clamp current 3 • Functional inspections 1(25A, M, F, models only),2(MI 3365 F model only), 3(With optional A 1283)
