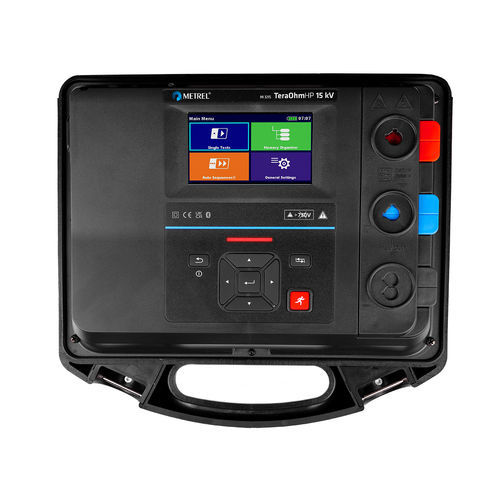

The MI 3215 TeraOhmHP 15 kV is a portable, battery or mains powered test instrument with excellent IP protection (IP65), intended for diagnosing of Insulation Resistance by using high DC test voltages of up to 15 kV.
MEASURING FUNCTIONS
• Insulation measurement
• Diagnostic test (PI, DAR, DD)
• Step voltage test
• Withstanding voltage test (DC) up to 15 kV
• Voltage and frequency measurement up to 999 V TRMS
• Capacitance measurement
KEY FEATURES
• Insulation resistance measurements of up to 35 TΩ
• Safety rated category up to CAT IV 1000 V to 3000 m
• Coded banana connectors with locking feature
• Newly designed HV crocodiles with a better grip
• Li-ion battery 4400 mAh
• Adjustable test voltage (50 V...15 kV) in 50 V and 100 V steps
• Maximum short circuit/charge current: >4 mA (mains supply) or >2.4 mA (battery supply)
• Charging rate for capacitive load <4 s/μF at 15 kV
• Discharging rate for capacitive load 30 V
• IP65 case rating
• Programmable AUTO SEQUENCEs
• Auto adjustment function
• Measurement results in numerical and graphical form
• PC software MESM for downloading and analysing test results and for test report printing
• Isolated RS-232 and USB communication ports, Bluetooth interface
• High quality accessories, including shielded test leads
• High EM interferences protection: Input AC current noise rejection 8 mA, input AC voltage noise rejection 1.5 kV
• Averaging of results (5, 10, 30, 60)
• Mains and rechargeable battery power supply
