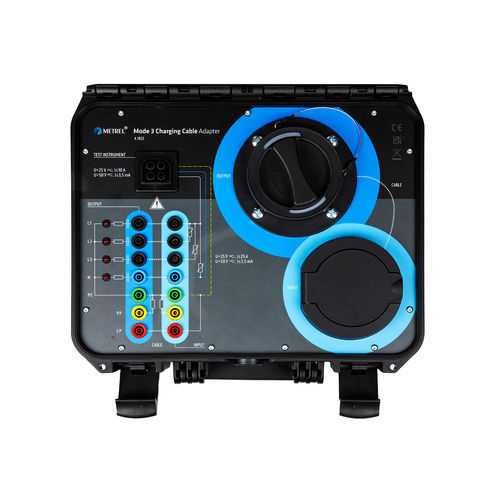

Electric adapter A 1832 Mode 3

for cablestestEVSE

The A 1832 Mode 3 Charging cable adapter is used for electrical safety testing of Mode 3 EV charging cables with Type 2 connectors together with supported METREL or third-party testers. MEASURING FUNCTIONS • Type 2 connectors enable connection of Mode 3 EV charging cable • Banana sockets outputs for connecting test instrument test leads • LED indicators for indication of continuity of phase conductors (L1, L2, L3, N) • Test input for connecting test instruments with AutoSequences® • Support for EV CABLES AUTO SEQUENCE®s • MESM report creation KEY FEATURES • Continuity testing of all wires: - L1 > L1 - L2 > L2 - L3 > L3 - N > N - PE > PE - CP > CP • Resistance of PP resistor (input) • Resistance of PP resistor (output) • Fast continuity check of L1, L2, L3, N conductors with LEDs (by using the sub leakage test) • Insulation resistance of phase conductors to earth
