Turbine flow meter IC-GTM
for airfor steamfor nitrogen

turbine flow meter
turbine flow meter
turbine flow meter
Add to favorites
Compare this product


Characteristics

Technology
turbine
Fluid
for air, for steam, for nitrogen, for natural gas
Installation
flange
Material
stainless steel
Communication
4-20 mA
Protection level
rugged, ATEX
Applications
industrial, for the oil and gas industry, for marine applications, for medical applications
Other characteristics
compact, digital, high-accuracy, with display, remote, high-pressure, high-temperature, custom, with alarm function
Volumetric flow rate

Min.: 0.4 m³/h
(14.1259 ft³/h)

Max.: 2,000 m³/h
(70,629.3334 ft³/h)

Process temperature

Min.: -40 °C
(-40 °F)

Max.: 350 °C
(662 °F)

Process pressure

400 bar
(5,801.51 psi)

Precision

2 %

Description

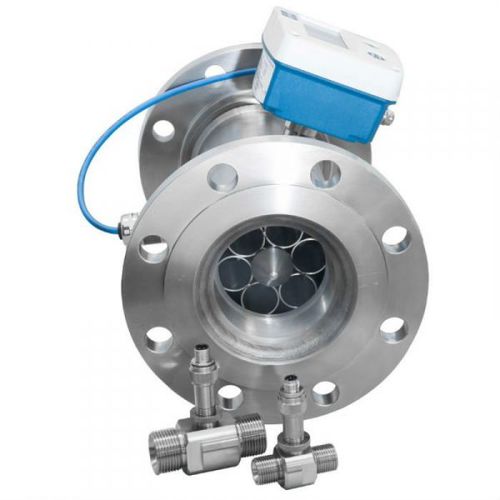

The Metri IC-GTM Turbine Flow Meter is a traditional Axial Gas Turbine Flow Meter for use with a variety of gases. The GTM offers good accuracy and a robust design for demanding industrial applications. The Metri IC-GTM series of turbine meters is available in a wide variety of body sizes and styles. This robust meter provides reliable performance regardless of varying density, pressure or temperature fluctuations. Features of the Metri IC-GTM Turbine Flow Meters include: Wide range of line sizes Accurate measurement with excellent linearity & repeatability Rugged stainless steel construction Versatile, adaptable design with custom options High pressure rating up to 1000 bar Selection of flow instruments & displays for compact or remote installation Choice of outputs including pulse, 4-20 mA ATEX rated option The Metri IC-LTM is compatible with the following displays: Metri FMS – flow rate / totaliser 4-20mA & alarm output (NEW product! – More details coming soon – contact us for information) Fluidwell F012 – field mount indicator / totaliser Fluidwell F110 – field mount indicator / totaliser with analog output ​ The standard lead time for this product is: 7 working days
