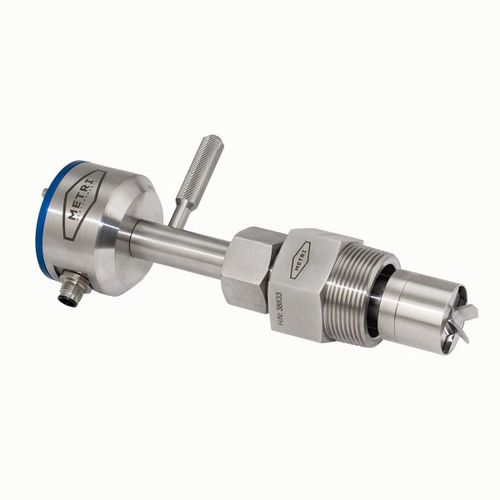

Turbine flow meter IC-IPM

impellerpaddlefor water

The Metri IC-IPM Insertion Paddlewheel Meter (IPM) Series is the ideal liquid flow meter for insertion into pipe sizes ranging from 40mm to 300mm. Simple to install and operate, this cost effective robust radial turbine meter provides accurate velocity measurement of a variety of liquid types such as water, oils, hydrocarbons and chemicals. The Insertion Paddle Wheel Flow Meter is ideal for use within building services, process plant machinery and remote access areas where minimal pressure drop and fitting to existing pipework is key. The Metri IC-IPM can be connected to either a battery or mains powered display; providing additional flowrate, totalizer, batch and ratio control functionality with a wide choice of outputs and communications options. The Metri Insertion Paddlewheel Meter comprises of a rugged, machined stainless steel rotor supported on a highly polished tungsten carbide shaft with dual sapphire ringtone bearings for reduced friction and an extended service life. Each meter houses a self-powered VR sensor for remote and battery operation; ATEX/IECEx certified equipment is also available for hazardous area applications. Metri IC-IPM Insertion Paddlewheel Flow Meter Features: Simple, rugged and easy to install Battery powered option available 100 bar pressure as standard with higher option available Complementary range of display instruments and fittings Wide range of pipe materials and sizes NPT or BSPT connection types as standard (Flanged ANSI/PN/JIS optional) Tungsten carbide shaft with sapphire bearing for extended service
