Turbine flow monitor IC-FMS
volumefor waterfor oil

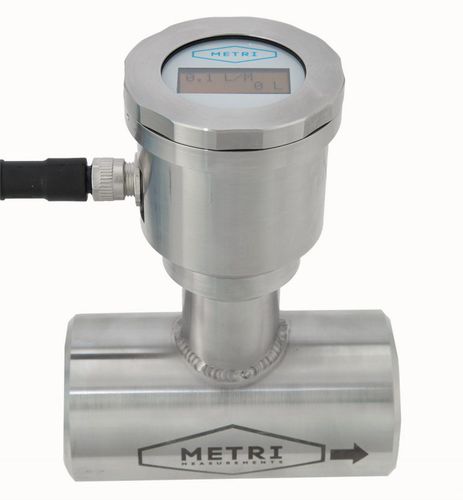

Turbine flow monitor - IC-FMS - Metri Measurements - volume / for water / for oil
Turbine flow monitor - IC-FMS - Metri Measurements - volume / for water / for oil
Turbine flow monitor - IC-FMS - Metri Measurements - volume / for water / for oil - image - 2
Add to favorites
Compare this product


Characteristics

Technology
turbine
Type
volume
Fluid
for water, for oil, for chemicals, for hydrocarbons, for solids
Installation
flange, threaded
Material
stainless steel
Communication
4-20 mA, analog output
Protection level
IP67, rugged
Applications
industrial, for wastewater treatment, for the oil and gas industry
Other characteristics
with LCD display, high-pressure, custom, high-temperature, with alarm function, with indicator-totalizer
Volumetric flow rate

Max.: 1,200 l/min
(317.0065 us gal/min)

Min.: 5.5 l/min
(1.4529 us gal/min)

Process temperature

Max.: 350 °C
(662 °F)

Min.: -40 °C
(-40 °F)

Process pressure

16 bar, 40 bar, 100 bar
(232.06 psi, 580.15 psi, 1,450.38 psi)

Description

Designed for use with liquids, the Metri IC-FMS Flow Monitor builds on the success of the LPM. Featuring rugged radial turbine flow technology with a simple local display transmitter and switch. The FMS Flow Monitor was designed with ease of use and functionality in mind. It employs a simple user friendly interface for analog output with configuration for High / Low alarm setpoint at specific flow rates. The FMS is housed in a rugged stainless-steel body and enclosure with toughened glass screen. IP67 rated the display has a 36mm x 28mm backlit LCD screen and 2 x 10 characters of text which provides users with flowrate and totalisation indication. The display also flashes when the alarm set point is exceeded for easy visual alarm / fault indication. The FMS is ideal for a wide range of general purpose, medical and industrial applications where stainless steel wetted parts are acceptable and good repeatability accuracy are essential. Designed with simplicity and flexibility in mind this high quality flow sensor can be configured with a variety of connection types, at pressure to 100 Bar and temperature to 350 deg C. Further customisation is possible, consult our engineers for further details on options. Metri IC-FMS Flow Monitor Features: Stainless steel wetted parts and housing Visual indication of flowrate & alarm Compatible with clean and partially contaminated liquids 4-20mA analogue output Alarm output Backlit LCD display Resettable totalizer High Pressure range High Temperature range Custom versions available for OEM’s IP67 Rating
