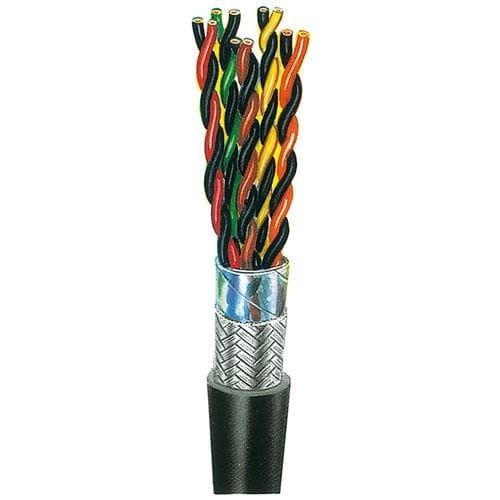

Data electrical cable 1P x AWG 28 C UL insulatedflame-retardantshielded
Add to favorites
Compare this product
Characteristics
- Type
- data
- Protection
- insulated, flame-retardant, shielded
- Configuration
- stranded, twisted pair, foil, semi-rigid
- Core material
- copper
- Applications
- control
- Material of the insulation
- PVC-sheathed
- Color of the insolation
- black
- Other characteristics
- connection, UL, transparent
- Nominal voltage
300 V
- Temperature
Min.: -10 °C
(14 °F)Max.: 105 °C
(221 °F)- Cross-section
0.09 mm²
(0 in²)- Length
1 m, 100 m, 500 m
(3'03" , 328'01" , 1640'05" )
Description
Control Cable with 7-stranded core 0,09mm² (AWG 28), especially for Insulation-Displacement-Connection (IDC), 1 to 12 pairs, shielded, jacket black
number of cores: - 2, 4, 6, 8, 12, 16, 24
