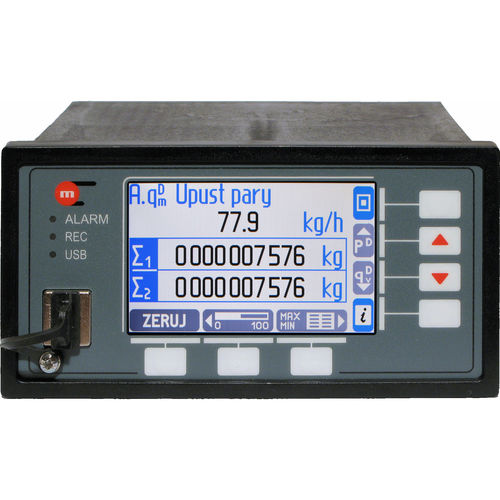

Liquids and gase flow computer FP-3011

datalogger

Flow computer for calculating compensated flow and thermal energy of steam, water and other liquid media and compensated flow of process gases with electronically registered results. - Simultaneous consumption calculations in up to two different measurement systems (A, B) for separate process lines. - The computer enables : compensated flow and energy measurement of unsaturated or saturated vapour and water, compensated flow and energy measurement of other liquids, calculations are made within a range of tabular values entered by the user, compensated flow measurement of process gases. - The computers can interact with the following types of flowmeters: mass flowmeter, volumetric flowmeter, differential pressure flowmeter with approximation using root characteristic or according to an iterative algorithm. - The device has ten measurement inputs : 2 x RTD/I, three inputs adapted for connection of resistance temperature sensors (Pt100, Pt200, Pt500, Pt1000, Ni100, Ni1000) and transducers with a 0/4‑20mA current output, 1 x I, four inputs for interaction with 0/4‑20mA transducers only, 2 x I/PULS,three inputs intended for connection of transducers with a 0/4‑20mA current output or with a pulse output (range 0.001Hz … 10kHz). - 4 semiconducting output relays: alarm and control functions, operation in pulse output mode with fixed pulse weight. - 1 optional 4-20mA analog outputs. - RS485 port and Ethernet port (www server). - 2GB internal flash memory (USB port).
