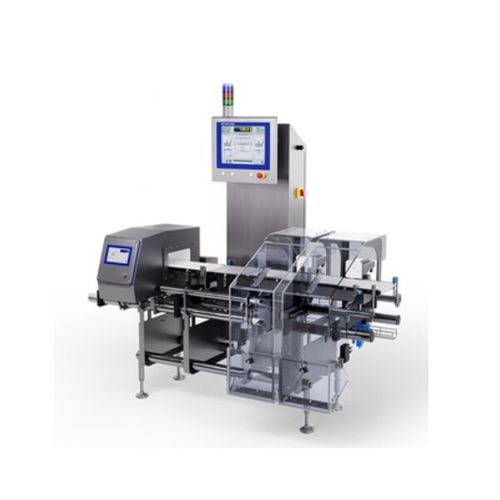

Checkweigher metal detector CM Combination

for the food industryfor the pharmaceutical industryfor the chemical industry

Integrated metal detection and checkweigher combine for a powerful critical control point in one space-saving device. Choose from a comprehensive set of metal detectors and dynamic in-line weighing solutions designed for your application. - Maximum Configuration Flexibility: Mix and match our range of metal detector and checkweigher models to meet your specific inspection requirements. - Compliance and Product Quality: Critical control point offers compliance with food safety requirements combined with precise 100% monitoring of product weights. - Enhanced Operator Efficiency: One-touch operation via the checkweigher HMI supports easy and automated product changeovers and monitors statistical information for both devices. Specifications IP Rating: IP54, IP65 Compatible Software: ProdX Connectivity: Ethernet TCP/IP, Fieldbus, OPC UA Inspection Solution: Checkweighing-Metal Detection Max Product Width: 400 mm Max Weighing Zones: 7 Weighing Technology: EMFR, Strain Gauge HMI: 12" / 15" / 7" Touchscreen Packaging Type: Bags, Bottle, Bundles, Cartons, Cases, Flow Packs, Trays Product Flow: Conveyor Frequencies: up to 300 / 600 / 800 kHz Inspection Application: Contamination Detection, Foreign Body Detection, Weight Control Weighing Accuracy: from ±0.01 g Max Product Height: 200 mm Max Product Weight: 10 kg Max Line Speed: 180 m/min Max Throughput: 800 ppm
