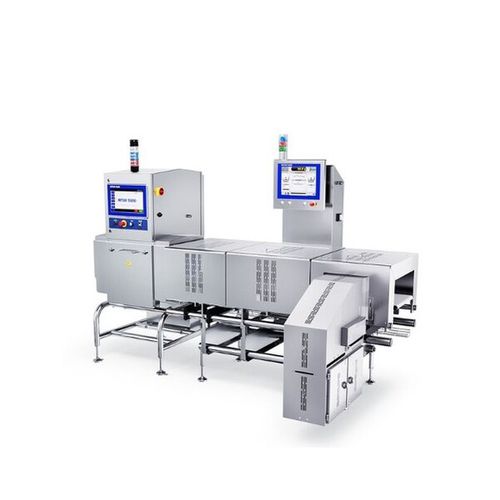

X-ray inspection system CX Combination

dynamic

Combined high-precision weighing with advanced x-ray technology for a precise system that meets industry standards and your individual requirements. Easily mix and match the solution to fit your budget. - Modular Design: The ultimate mix-and-match principle is highly flexible and makes it possible to balance performance and budget to suit your needs. - Easy Operation: Perform configuration settings and product changeovers from the checkweigher HMI. Use the front panel access on the X-ray system for easy cleaning. - Space-Saving Solution: Seamless integration optimizes production space, plus sharing components, such as sorting devices and product handling, offer further space savings. Inspection Application Clip Detection Completeness Check Contamination Detection Fill level Check Foreign Body Detection Integrity Check Mass Control Product-Trapped in Seal Weight Control Specifications IP Rating: IP54, IP66, IP69 Connectivity: Ethernet TCP/IP, Fieldbus, OPC UA Weighing Technology: EMFR, Strain Gauge Cooling Method: Air Conditioner Product Flow: Conveyor X-ray Beams: Single vertical beam X-ray Detector: Dual Energy, HiGain+ DE Technology, Single Energy, HiGain Technology, Single Energy, HiGain+ Technology X-ray Emissions: < 1uSv/hr Max Throughput: 800 ppm Diode Size: 0.4 mm Inspection Solution: Checkweighing-X-ray Max Product Width: 400 mm Max Weighing Zones: 7 HMI: 12" / 15" Touchscreen X-ray Generator: 100 W, up to 84 kV, up to 1.2 mA Beryllium Tube / 100 W, up to 84 kV, up to 3.3 mA Beryllium Tube / 100 W, up to 84 kV, up to 3.3 mA Glass Tube / 150 W, up to 85 kV, up to 3.0 mA Glass Tube Weighing Accuracy: from ±0.01 g Max Line Speed: 100 m/min
