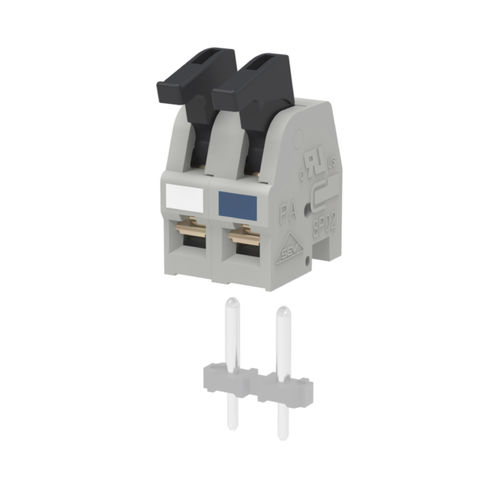

Printed circuit board terminal block SP02502HDNC ASP0250204-001Ethernet
Add to favorites
Compare this product
Characteristics
- Mounting
- for printed circuit boards
- Other characteristics
- Ethernet
- Cross-section
Min.: 0.08 mm²
(0 in²)Max.: 1.5 mm²
(0 in²)
Description
・ethernet-capable spring clamp terminal block with eccentric lever, pluggable
・centerline 5.00 mm, direction of connection 90°
・fittable without loss of poles
・color gray, color coding for conductor colors according to SPE (white/blue)
