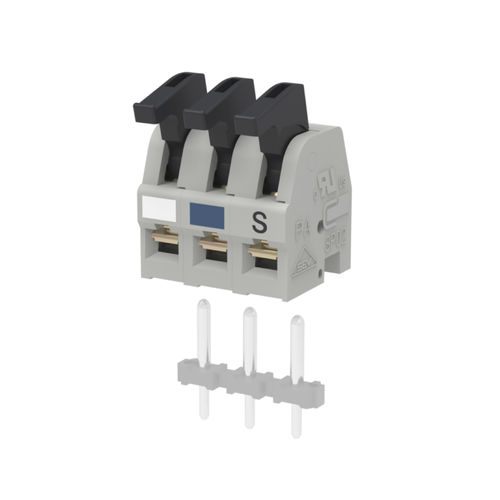

Printed circuit board terminal block SP02503HDNC ASP0250304-001lever-operatedspringgray
Add to favorites
Compare this product
Characteristics
- Mounting
- for printed circuit boards
- Connection
- lever-operated, spring
- Other characteristics
- gray, Ethernet
- Number of poles
- 3-pole
- Cross-section
Max.: 1.5 mm²
(0 in²)Min.: 0.08 mm²
(0 in²)
Description
・ethernet-capable spring clamp terminal block with eccentric lever, pluggable
・centerline 5.00 mm, direction of connection 90°
・fittable without loss of poles
・color gray, color coding for conductor colors according to SPE (white/blue/S)
