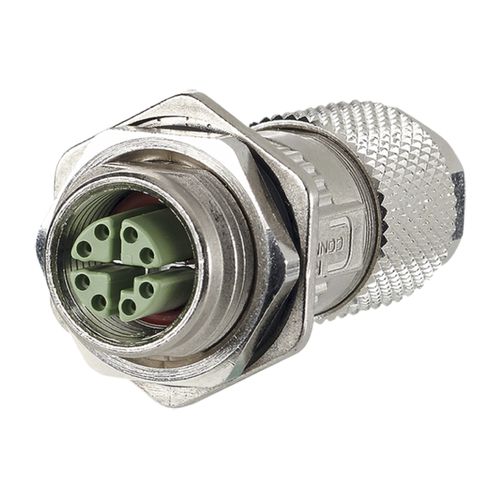

Data connector MMF881A315-0001M12 X-coded8-poledie-cast zinc
Add to favorites
Compare this product
Characteristics
- Type
- data
- Size
- M12 X-coded
- Electrical characteristics
- 8-pole
- Material
- die-cast zinc
- Product applications
- for railway applications
- Protection class
- IP67
- Other characteristics
- IEC
Description
・8-pole M12 jack for field assembly Cat.6A
・per IEC 61076-2-109 with flange
・suitable for 10 GBit as per IEEE 802.3an
・AWG 26/1 - 22/1, AWG 26/7 - 22/7 can be connected
・solid copper wire diameter 0.4 to 0.64 mm
・stranded copper wire diameter 0.48 to 0.76 mm
・wire diameter with isolation up to 1.6 mm
・overall cable diameter from 6.0 to 9.7 mm
・jack consists of only two parts
・easy assembly without special tools
・industry-compatible zinc die-cast housing
・suitable for applications in the railway industry according to data sheet
