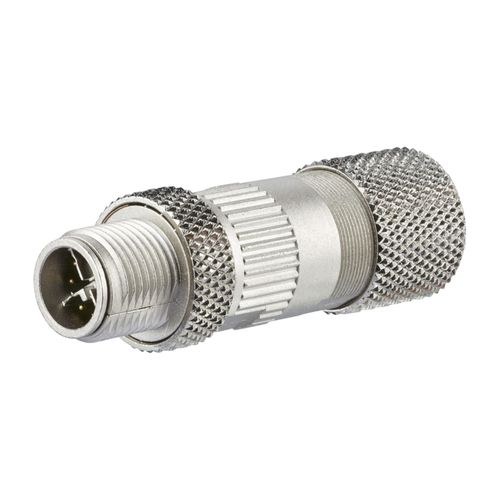

Data connector MNF881A315-0001M12 X-codeddie-cast zincfor railway applications
Add to favorites
Compare this product
Characteristics
- Type
- data
- Size
- M12 X-coded
- Material
- die-cast zinc
- Product applications
- for railway applications
- Protection class
- IP67
- Other characteristics
- IEC, category 6a
Description
・M12 Cat.6A X-coded plug based on IEC PAS 61076-2-109 and suitable for field assembly
・for a 8-wire M12 plug for AWG 22
・connection of AWG 26/1 - 22/1, AWG 26/7 - 22/7 possible
・solid copper wire diameter from 0.4 to 0.64 mm
・stranded copper wire diameter from 0.48 to 0.76 mm
・core diameter up to 1.6 mm
・cable jacket from 6.0 to 9.7 mm
・consists of only 2 parts
・easy assembly - connection without special tools
・zinc die-cast housing for industrial use
・suitable for applications in the railway industry according to data sheet
